Specifications
- Brand Name: RF-STAR
- Origin: CN(Origin)
- Condition: New
- is_customized: Yes
- Model Number: RF-BM-2652P2
- Frequency: 2402 MHz ~ 2480 MHz
- IC: CC2652P
- Protocol: Bluetooth 5.1 Low Energy, ZigBee, Thread, IEEE 802.15.4, 6LoWPAN
- Core: 48 MHz ARM Cortex-M4F
- Max. TX Power: +20.0 dBm
- Receiving Sensitivity: -121 dBm
- Supply Voltage: 1.8 V ~ 3.8 V
- Dimension: 30.0 mm 16.4 mm (2.2 ± 0.1) mm
- Flash: 352 KB
- ROM: 256 KB
- Peripherals: UART, SPI, IIC, IIS, ADC
- Antenna: PCB on-board, IPEX connector, half-hole interface
- GPIO: 23
- Function: Dynamic Multi-protocol Manager (DDM)
- Operating Temperature: -40 ~ +85
- Application: building security systems, HVAC, medical

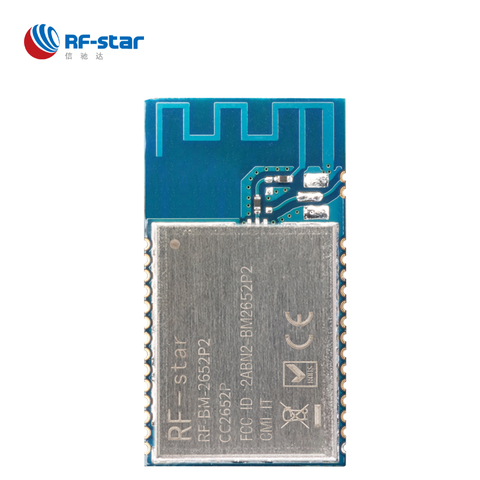

CC2652P 20 dBm IPEX PCB Antenna ZigBee 3.0 BLE5.1 Module Multi-Protocol CC2652P Transceiver RF-BM-2652P2
