Specifications
- Certification: CE
- Origin: CN(Origin)
- Coil Number: Autotransformer
- Model Number: C2T hall effect current sensor
- is_customized: Yes
- Phase: Single
- Coil Structure: Toroidal
- Usage: Current
- Inner hole size: 21mm / 0.82inch
- Rated current(Ipn): ±50A, ±100A, ±200A, ±400A, ±600A
- Measure range(Ip): 0-±75A, 0-±150A, 0-±300A, 0-±600A, 0-±900A
- Rated output: @Ip=±Ipn ±2±1%V
- Zero voltage: @Ip=0 5±0.5%V
- Supply voltage: +12, +15V, +24V
- Power Consumption: <15 mA
- Zero offset voltage: @Ip=0 ±20mV
- Magnetic offset: @Ip=±Ipn-0 ±15mV
- Linearity: @Ip=0-±Ipn ≤1%FS
- Response time: @50A/μS, 10%-90% ≤7 μs
- Galvanic isolation: @ 50HZ,AC,1min 2.5KV
- Isolation resistance: @ DC 500V 1000MΩ

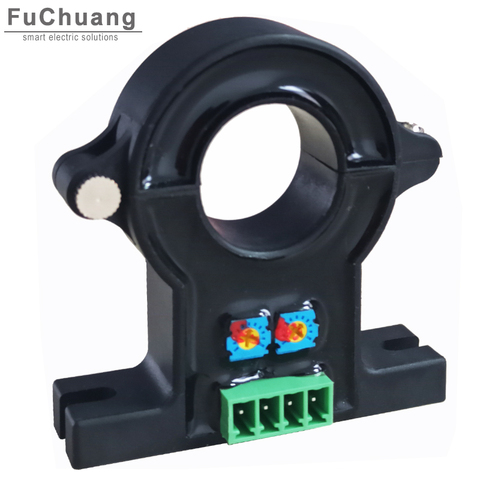

C2T Hall Current Sensor input(Ipn) 50A 100A 200A 400A 600A output 2V Static converters for DC motor drives
11.78
$
29
orders
/
6
reviews
