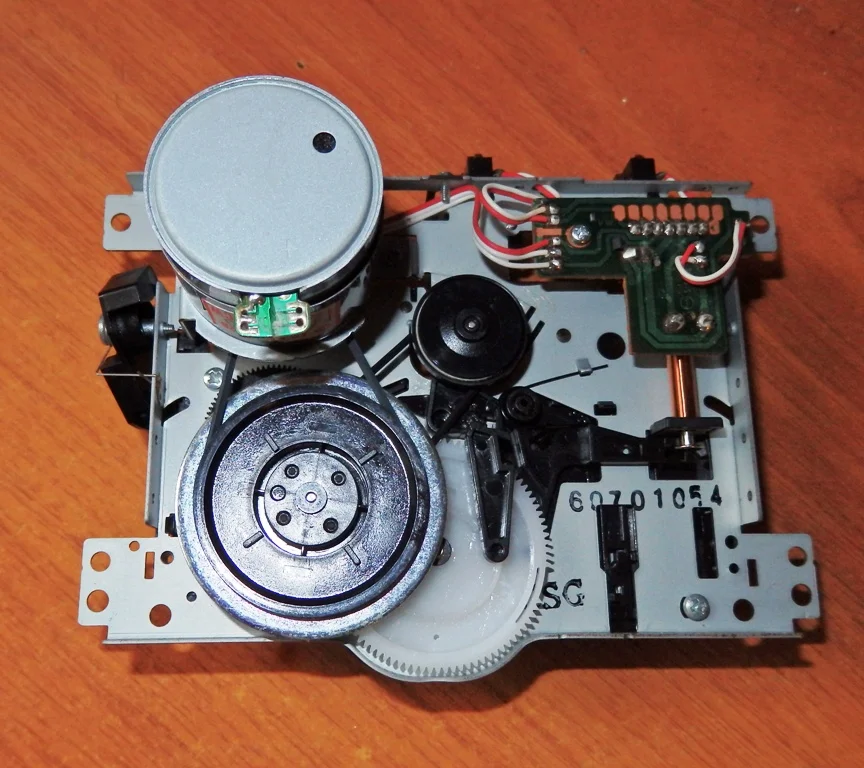

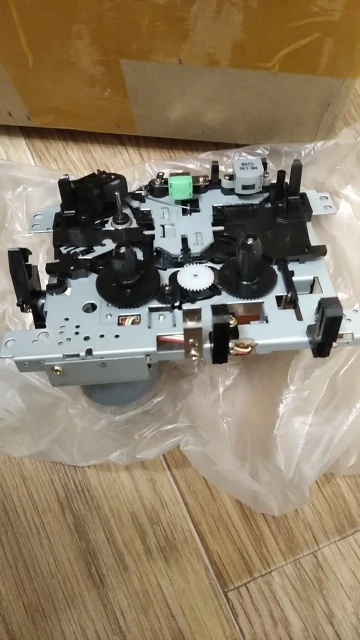

Excellent cassette mechanism! Place this information on the pages of Your product. Here is the circuit Board diagram. Here: REC - recording blocking switch, MODE - mode entry switch, HALF - cassette presence sensor, 5V and GND - plus and minus power supply voltage. The first pin of the PH2.0-7AW connector is located at the undiluted contact.
