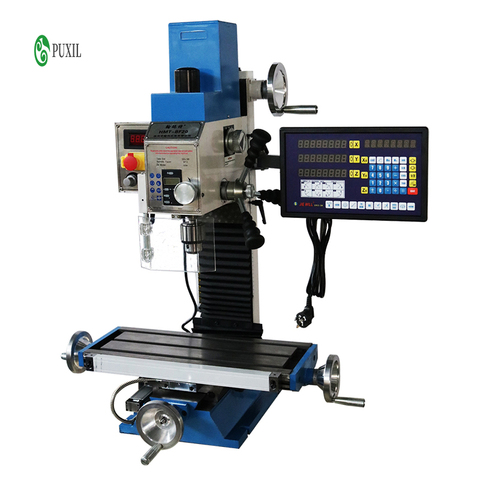

BF28V  Multi-functional High-Precision Household Micro-Drilling And Milling Integrated Lathe Small Drilling Machine ► Photo 1/6
BF28V  Multi-functional High-Precision Household Micro-Drilling And Milling Integrated Lathe Small Drilling Machine ► Photo 1/6
BF28V  Multi-functional High-Precision Household Micro-Drilling And Milling Integrated Lathe Small Drilling Machine ► Photo 2/6
BF28V  Multi-functional High-Precision Household Micro-Drilling And Milling Integrated Lathe Small Drilling Machine ► Photo 3/6

Specifications

  • Brand Name: PUXIL
  • Origin: CN(Origin)
  • Type: Vertical
  • Condition: New
  • CNC or Not: Normal
  • Model Number: BF-28
  • Name: BF28V Milling & Drilling machine
  • Model:: type
  • Voltage:: 220V
  • Power:: 1250W
  • X axis travel :: 480mm
  • Y axis travel :: 180mm
  • Z axis displacement:: 380mm
  • Left and right rotation angle head:: plus or minus 90 °
  • Drilling diameter:: 25mm
  • Maximum face milling capacity:: 52mm
  • Maximum vertical milling capacity:: 28mm
  • Distance between mandrel and table:: 350mm
  • Conical Mohs spindle hole:: MT3
  • Sleeve Stroke:: 52mm
  • Shaft speed:: 50-2250 rpm
  • Countertop T-slot width:: 12mm
  • Net weight / gross weight:: 105/134kg

BF28V Multi-functional High-Precision Household Micro-Drilling And Milling Integrated Lathe Small Drilling Machine

Seller:
Alitools rating:
20%
/
Aliexpress rating:
0%
1 531.00 $
