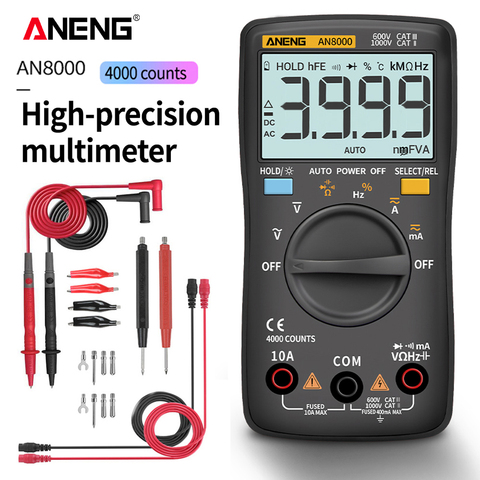

ANENG AN8000 Digital Multimeter 4000 counts profesional capacitor tester esrs meter richmeters inductance meter digital tester ► Photo 1/6
ANENG AN8000 Digital Multimeter 4000 counts profesional capacitor tester esrs meter richmeters inductance meter digital tester ► Photo 1/6
ANENG AN8000 Digital Multimeter 4000 counts profesional capacitor tester esrs meter richmeters inductance meter digital tester ► Photo 2/6
ANENG AN8000 Digital Multimeter 4000 counts profesional capacitor tester esrs meter richmeters inductance meter digital tester ► Photo 3/6

Photos of buyers

14 more
photos

Specifications

  • Brand Name: ANENG
  • DIY Supplies: Electrical
  • Model Number: AN8000
  • AC Current: 40mA/400mA(+-1.0%+4),10A(+-1.5%+4)
  • AC Voltage: 400mV/4V/40V(+-0.5%+4),400V/600V(+-0.8%+4)
  • Measuring Resistance Range: 0.1-40M
  • Operating Mode: double-integral style A/D transform
  • Measuring Inductance Range: -
  • Display Type: Digital Display
  • DC Current: 40mA/400mA/10A(+-2.0%+4 ,50-200Hz)
  • DC Voltage: 400mV(+-1.5%+4), 4V/40V/400V(+-1.2%+4),600V(+-1.5%+4)
  • Measuring Capacitance Range: 0.004nF-200.0uF
  • Dimensions: 65x130x32 mm
  • Operating Temperature: 0 - 50 ℃
  • DC current: 0.1uA to 10A
  • Duty cycle: 1% to 99%
  • Frequency: 1Hz to 10MHz
  • Main measurements: AC/DC Voltage AC/DC Current Resistance Capacitance
  • Data hold: yes
  • Large LCD display: 4000 counts
  • Battery type: AAA x2 Pcs 1.5V
  • Measuring Voltage Range: 600mV/6V/60V/600V/1000V
  • Measuring Current Range: AC current 0.1uA to 10A

ANENG AN8000 Digital Multimeter 4000 counts profesional capacitor tester esrs meter richmeters inductance meter digital tester

Seller:
Alitools rating:
85%
/
Aliexpress rating:
90%
14.64 16.24 $
100   orders
/
15   reviews
Rating: 4.5

Price history

Price drop notification

Out telegram bot will notify you once the price drops to the desirable one

Customer Reviews

M***D
September 5, 2019

not as discription

K***e
August 4, 2019

capacitance meter is not working.no changes in measurements
