Specifications

  • Brand Name: HASecurity
  • Type: AHD Camera
  • Supported Operating Systems: No
  • High Definition: 1080P(Full-HD)
  • Lens (mm): without LENs
  • Style: Mini Camera
  • Connectivity: Closed System/CCTV Wired
  • Installation: Embedded
  • Power Consumption(W): < 3W
  • Color: Black
  • Minimum Illumination(Lux): 0.001 LUX
  • Sensor: CMOS
  • Megapixels: 2MP
  • Sensor Brand: Sony
  • Special Features: No
  • Storage: None
  • Power Supply: Normal
  • TF Card: None
  • IR Distance(m): No
  • is_customized: No
  • Power Supply(V): DC12V / 100mA (approximate)
  • Model Number: F50M90_imx327
  • Dimensions (L x W x D)(mm): 38 x 38 mm PCB size
  • Network Interface: None
  • Audio Output: No
  • Resolution: 1920 x 1080 / 720 x 576
  • Video Output: AHD-H (1080P) / CVBS (D1)
  • Image Sensor Type: 1/2.8" SONY STARVIS IMX327 CMOS
  • DSP: FH8550M
  • Operation Temperature: -0C ~ +50C

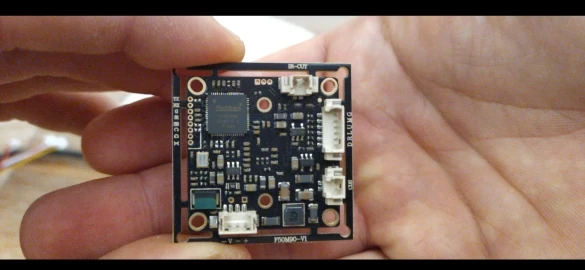

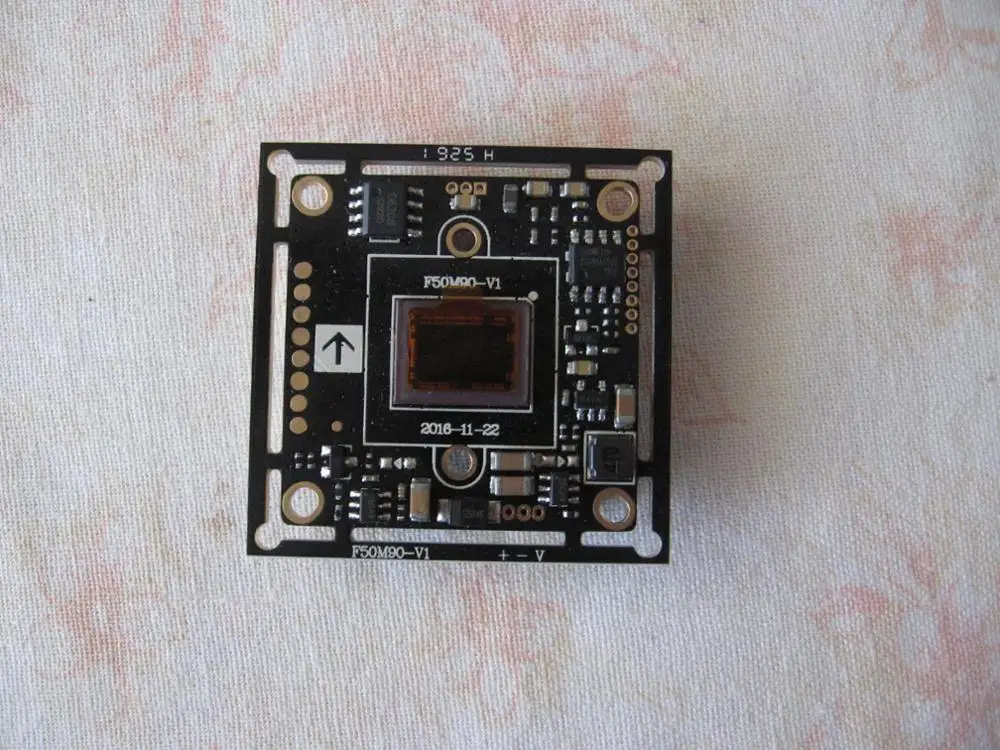

AHD-H / CVBS 1/2.8" STARVIS IMX327 CMOS image sensor + FH8550 CCTV camera PCB board module (optional parts)

Seller:
Alitools rating:
77%
/
Aliexpress rating:
100%
20.00 24.00 $
1   orders
/
8   reviews
Rating: 5

Price history

Price drop notification

Out telegram bot will notify you once the price drops to the desirable one

Customer Reviews

Anonymous
September 28, 2020

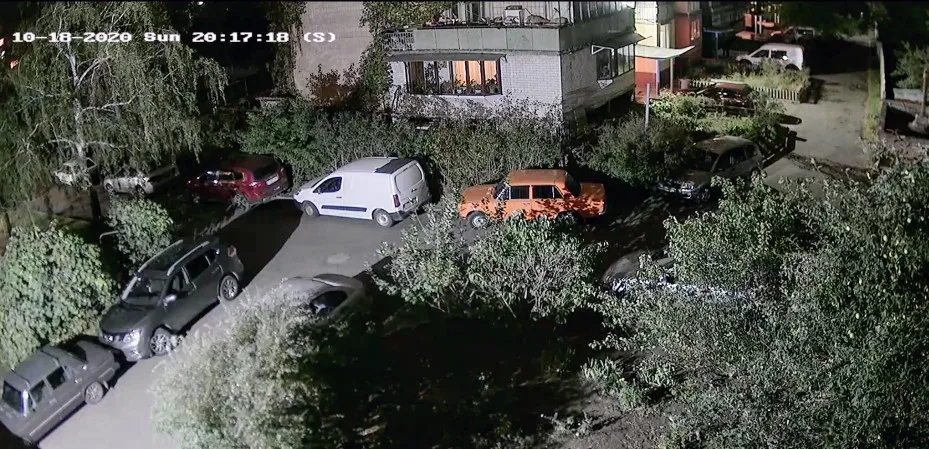

Excellent color night vision, WDR function does a good job with scenes that the older cameras were useless for. When I use these boards to repair old cameras I disconnect the IR LEDs and leave the ICR disconnected in "day" mode, in order to enjoy color video at night.

Anonymous
September 28, 2020

Excellent color night vision, WDR function does a good job with scenes that the older cameras were useless for. When I use these boards to repair old cameras I disconnect the IR LEDs and leave the ICR disconnected in "day" mode, in order to enjoy color video at night.
