Specifications
- Brand Name: Your Cee
- Type: Vibration Sensor
- Output: Analog Sensor
- Usage: Vibration Sensor
- Theory: Current Sensor
- Model Number: AC Current Sensor
- Material: Mixture
- is_customized: Yes

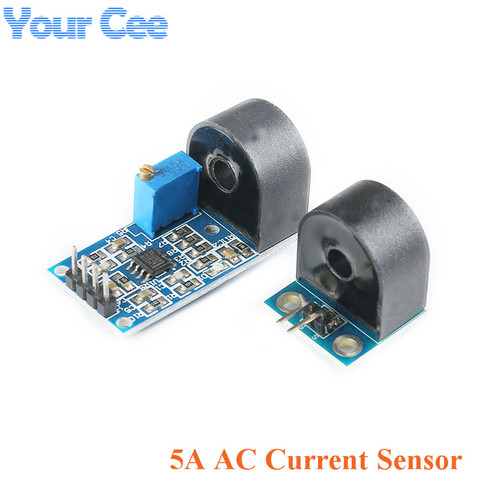

AC Current Sensor ZMCT103C High Precision Current Transformer Single-Phase 5A/5mA Sensor Module DIY
0.52
–
1.12
$
46
orders
/
3
reviews
Price history
- for 3 month
- for half a year
- Requires Alitools extension
The Alitools extension is required to keep track of an item and receive notifications when prices drop.
Price drop notification
0.49 $ (-5%)
0.49 $ (-5%)
0.47 $ (-10%)
0.44 $ (-15%)
0.42 $ (-20%)
Out telegram bot will notify you once the price drops to the desirable one
This item is from other sellers
Similar Products
Customer Reviews
G***o
December 1, 2020
Thanks.
M***a
November 4, 2020

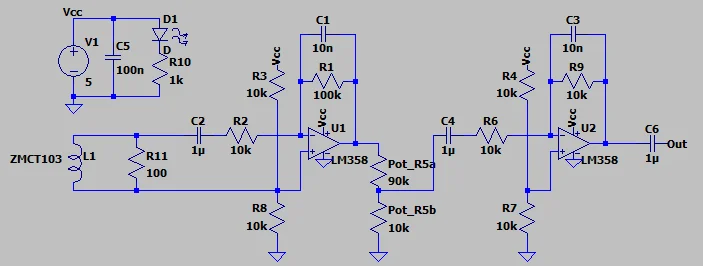

The real circuit looks as in attachment (capacitances may be a bit different). First op amp has gain of 10, which together with 100 Ohm shunt resistor supplied by transformer 1000:1, gives final ratio 1V/1A. As the op amp input is referenced to half power suppy (2,5V) and his output saturation voltage is ~3,8V, so maximal 1,3V can be produced at output without distortion/saturation. This means that max measurable current is 1,3A peak (~0,92 sinus RMS) - not 5A as declared. Second stage op amp is passed to output by capacitor - may need external level polarization, before entering ADC. Take it into consideration before order.
