Specifications
- Certification: NONE
- Origin: CN(Origin)
- Coil Number: Autotransformer
- Model Number: A-D5T hall effect current sensor
- is_customized: Yes
- Phase: Single
- Coil Structure: Toroidal
- Usage: Current
- Inner hole size: 20mm / 0.78inch
- Rated current(Ipn AC): 10A 20A 30A 50A 100A
- Measure range(Ip AC): 0-12A, 0-24A, 0-36A, 0-60A, 0-120A
- Rated output(Io DC): @Ip=+-Ipn AC 4-20+-1% mA
- Supply voltage: +12 to +32V
- Power Consumption: +35+ Io mA
- Zero current: @Ip=0 4+-0.1mA
- Linearity: @Ip=0 to +-Ipn less than 0.5%FS
- Response time: less than 300ms
- Galvanic isolation: @ 50HZ,AC,1min 3KV
- Bandwidth: 20 to 20000Hz

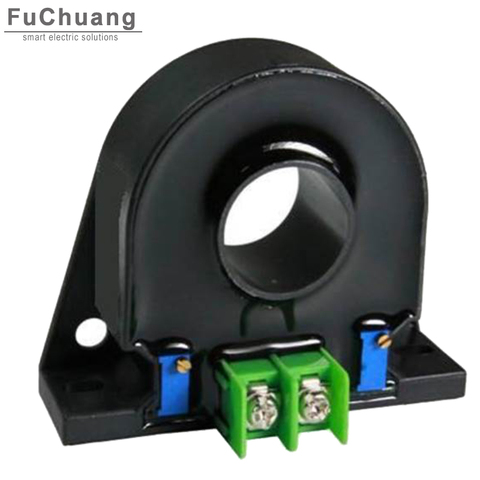

A-D5T hall effect current sensor Ac to Dc Transmitter input(AC) 10A 20A 30A 50A 100A and output(DC) 4-20mA
