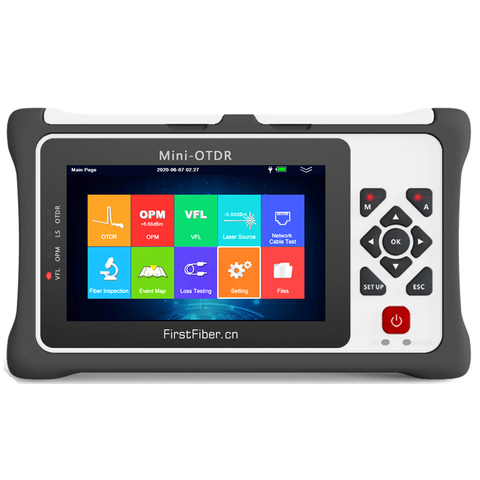

980EXT-D20SF Pro mini OTDR Reflectometer for GPON EPON Live in-service Testing  with OPM OLS VFL Touch Screen Fiber Optic OTDR ► Photo 1/2
980EXT-D20SF Pro mini OTDR Reflectometer for GPON EPON Live in-service Testing  with OPM OLS VFL Touch Screen Fiber Optic OTDR ► Photo 1/2
980EXT-D20SF Pro mini OTDR Reflectometer for GPON EPON Live in-service Testing  with OPM OLS VFL Touch Screen Fiber Optic OTDR ► Photo 2/2

Photos of buyers

9 more
photos

Specifications

  • Brand Name: OLOEY
  • Item Length: 1m
  • Compatible: Dell
  • Fiber Type: Single Mode
  • Connector Type: FC/UPC
  • Size: 175x105x45mm
  • Model Number: 980EXT-D20SF
  • Weight: 570g (Battery Included)
  • Screen Display: 4.3 inch touch-sensitive TFT Screen
  • Power Supply: Input: 100V(ac) to 240V(ac), 50~60Hz, 0.8A; Output: 9V(DC), 2A
  • Battery: 5200mAh/3.7V Lithium battery, Standby Time>10 hours
  • Back light: Common/Highligh/Power saving/Customized
  • Auto power off: Never/1min/5min/10min/30min/60min
  • Data Storage: SD Card: 8GB (about 100,000 curves)
  • Language: Russian, English, Spanish, French, Korean, Italian
  • Pulse Width: 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs
  • Distance Range: 100m, 500m,2km, 5km, 10km, 20km, 40km, 60km, 90km
  • Sampling Resolution: Minimum 0.2m
  • Sampling Point: Maximum 64,000 points
  • Linearity: ≤0.05dB/dB
  • Averaging Time: 10s, 15s, 30s, Real Time, Customized
  • Distance Resolution: 0.01m
  • Units: km, miles, kfeet
  • OTDR Trace Format: Telcordia universal, SOR, issue 2(SR-4731)
  • VFL Wavelength: 650nm
  • VFL Output Power: 10mw, CLASSIII B
  • Range: 12km
  • Launching Mode: CW/2Hz
  • OPM Wavelength: 850/1300/1310/1490/1550/1625/1650nm
  • OPM Test Range: -70~+ 10dBm (in default) or -50~+ 26dBm
  • OPM Resolution: 0.01
  • Modulation: 270/1k/2k Hz
  • OLS Wavelength: Same as OTDR Wavelengths
  • OLS Output Power: -10 to -4dBm
  • OLS Output mode: CW/270/1k/2k Hz

980EXT-D20SF Pro mini OTDR Reflectometer for GPON EPON Live in-service Testing with OPM OLS VFL Touch Screen Fiber Optic OTDR

Seller:
Alitools rating:
37%
/
Aliexpress rating:
100%
285.00 $
36   orders
/
5   reviews
Rating: 5

Price history

Price drop notification

Out telegram bot will notify you once the price drops to the desirable one

This item is from other sellers

Customer Reviews

T***i
November 14, 2020

All OK
