Specifications
- Origin: CN(Origin)
- Certification: ce
- Certification: ISO
- Certification: ROHS
- Current / Phase: 6A
- Step Angle(degrees): 1.8
- Phase: 2
- Type: Hybrid
- Model Number: 86HS11860A4
- Holding Torque: 85 Kg.cm, 85Kg.cm
- Phase Inductance: 6.0mH
- Rated voltage: 3.6V
- Phase Resisitance: 0.6Ω
- Motor Length: 118 mm
- No of leads: 4
- Frame size: Nema34 86mm
- Detent Torque: 2400 g.cm Max

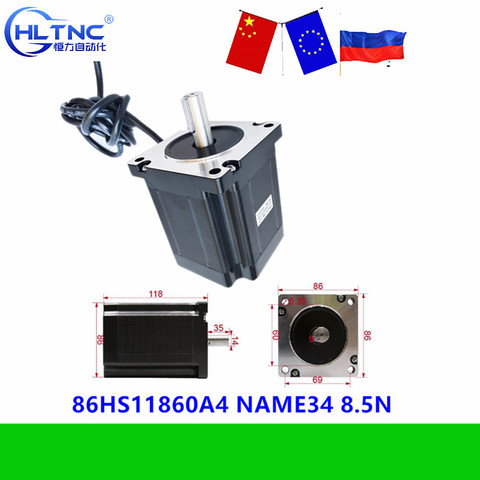

86mm Nema 34 Stepper motor 118 mm body length 8.5N.m torque from China good quality
