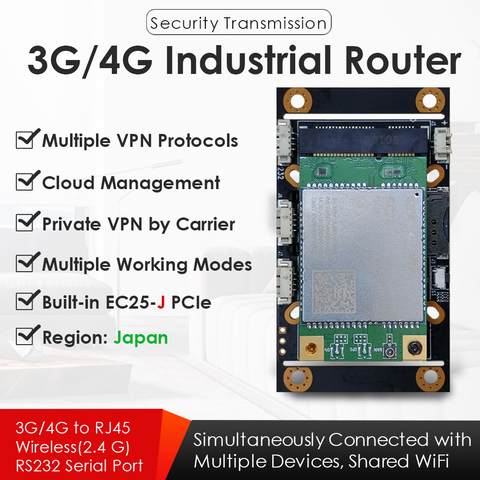

4G LTE Industrial WiFi Wireless Router VPN Data Pass-Through LTE FDD B1/B3/B8/B18/B19/B26 W/SIM Card Slot EC25-J Mini PCIe Modem ► Photo 1/5
4G LTE Industrial WiFi Wireless Router VPN Data Pass-Through LTE FDD B1/B3/B8/B18/B19/B26 W/SIM Card Slot EC25-J Mini PCIe Modem ► Photo 1/5
4G LTE Industrial WiFi Wireless Router VPN Data Pass-Through LTE FDD B1/B3/B8/B18/B19/B26 W/SIM Card Slot EC25-J Mini PCIe Modem ► Photo 2/5
4G LTE Industrial WiFi Wireless Router VPN Data Pass-Through LTE FDD B1/B3/B8/B18/B19/B26 W/SIM Card Slot EC25-J Mini PCIe Modem ► Photo 3/5

Specifications

  • Brand Name: JTOKEN
  • Networking Protocol: IEEE 802.11b/g/n
  • Model Number: V518
  • Wi-Fi Supported Frequency: 2.4G
  • Wifi Frequence: 2.4G
  • Max. LAN Data Rate: 300Mbs
  • Network Type: 4G/3G
  • Antenna Peak Gain: 5dBi
  • Wi-Fi Transmission Standard: 802.11n
  • Wi-Fi Transmission Standard: 802.11b
  • Wi-Fi Transmission Standard: 802.11g
  • 2.4G Wi-Fi Transmission Rate: 300 Mbps
  • Wireless Security: WPA/WPA2
  • Supports VPN: Yes
  • LAN Ports: 2
  • Built-in Firewall: Yes
  • 4G LED(Green): Slow Flash: Disconnected, Quick Flash: Dialing,Steady: Connected
  • Antenna: WIFI(x2)/4G(x1) Omnidirectional IPEX Antenna
  • Browsers Requirement: IE9.0/Chrome 60.0.0/Firefox 55.0.0/ Safari:5.0.0 Later Version
  • Button: Reset Button(Press For More Than 5 Seconds to Reset)
  • Carrier: Others, SoftBank, KDDI,DoCoMo
  • Certification: CCC/ROHS
  • COMM(RS232): RS232 By Default,Snap-in Interface (TTL 3.3V or RS232 5V)
  • Dimension: 73.4mm*42mm*11.8mm (With Side Board and Position Hole)
  • Flash: 1Gb/64Mb
  • LAN/WAN Interface: LAN/WAN Pin Interface x 1(10/100Mbps Adaptive) or Ethernet Port
  • LAN2: LAN2 Pin Interface x 1(10/100Mbps Adaptive)
  • LTE FDD: B1/B3/B8/B18/B19/B26
  • LTE TDD: B41
  • Max. Users: Wired Connection: 100nos (Theoretically),Wireless Connection: 60nos
  • Network Connection: Wireless, Relay, WISP, Bridge,3G/4G, Wire, Intelligent Backup Mode
  • Power Consumption: Less Than 500mA When Powered by 12V(Full Load))
  • Power Supply: DC Pin(with snap-in) 5~16V/2A, 12V Recommended
  • Receiving Sensitivity of WiFi(2.4G): -65dBm at 300Mbps/-73dBm at 54Mbps/-86dBm at 11Mbps
  • Signal LED(Green): Green When Signal Is Strong
  • Signal LED(Red): Red When Signal Is Bad
  • SIM Card Slot: Hot-Plugged Not Supported,Gap Outwarded,Micro SIM slot
  • SOC: MT7628
  • Standard of WIFI(2.4G): IEEE802.11bgn 300Mbps(2T2R)
  • Storage Temperature: -20C ~ +85C (-20F ~ +185F)
  • Transmission Power of WiFi(2.4G): 11n HT40 MCS7 15dBm/11b CCK 18dBm/11G OFDM 15dBm
  • WCDMA: B1/B6/B8/B19
  • Working Temperature: -20C ~ +70C (-20F ~ +158F)
