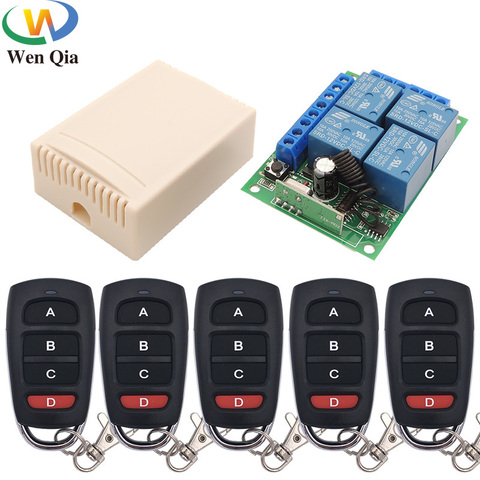

433MHZ Universal Wireless Remote Control smart Switch DC12V 4CH Relay Receiver Modul RF Transmitters Lamp fan room Led Light DIY ► Photo 1/6
433MHZ Universal Wireless Remote Control smart Switch DC12V 4CH Relay Receiver Modul RF Transmitters Lamp fan room Led Light DIY ► Photo 1/6
433MHZ Universal Wireless Remote Control smart Switch DC12V 4CH Relay Receiver Modul RF Transmitters Lamp fan room Led Light DIY ► Photo 2/6
433MHZ Universal Wireless Remote Control smart Switch DC12V 4CH Relay Receiver Modul RF Transmitters Lamp fan room Led Light DIY ► Photo 3/6

Photos of buyers

11 more
photos

Specifications

  • Brand Name: WenQia
  • Origin: CN(Origin)
  • Current: 10A
  • Features: 433Mhz RF remote control
  • Material: Plastic
  • Certification: CCC
  • Item Type: Switches
  • Warranty: 1 Year RF 433 MHz 86 4CH Wall Panel Remote Smart Home Led Light Switch
  • Is Smart Device: no
  • Model Number: 1204+KT16
  • Switch Type: Remote Control
  • Remote Distance: Up to 50m(theoretical distance)
  • Working Voltage: AC 1~250 V
  • Power Voltage: DC 12 V
  • Receiver Size: 2.8*2*1 in(70*50*25 mm)
  • Receiver Weight: 0.17 lb(75g)
  • Quiescent Current: less than 5mA
  • Operating Mode: Momentary / Toggle/ Latched/Mix
  • Max Current: 10A
  • RF Frequency: 433MHz
  • Remote Size: 2.36*1.18 in(60*30 mm)
  • Remote Weight: 0.09 lb(40 g)
  • Remote Battery: 1pcs CR2016(Include)
  • Receiving Range: Up to 50m(theoretical distance)
  • Receiving Sensitivity: more than 97dbm
  • Working Temperature: -30~+80 Celsius
  • Amount of storage remote controls: about 25 pieces
  • Features: Wireless Remote Control Switch RF Relay Output 12V 4 Channel Receiver
  • Support Encoding: 1527 Leaning code/2262 Fixing code
  • Modulation Mode: ASK superheterodyne wireless reception
  • Port: NO COM NC
  • Shell: YES
  • Application scenario: Family, Farm, Factory, Office, Supermarket
  • Application2: Garage, Light, Automated curtains, Fan, Door, Gate, LED, Lamps, Motor
  • Application3: Kithcen,bathroom light,intellience home

433MHZ Universal Wireless Remote Control smart Switch DC12V 4CH Relay Receiver Modul RF Transmitters Lamp fan room Led Light DIY

Seller:
Alitools rating:
87%
/
Aliexpress rating:
100%
5.22 22.04 $
15   orders
/
2   reviews
Rating: 5

Price history

Price drop notification

Out telegram bot will notify you once the price drops to the desirable one

Customer Reviews

i***m
January 5, 2021

sometimes the receiver was not operated, though i had a remote control on . why?? and how can i fix it?

L***T
December 24, 2020

Perfecto

Anonymous
