Specifications
- Brand Name: Diese

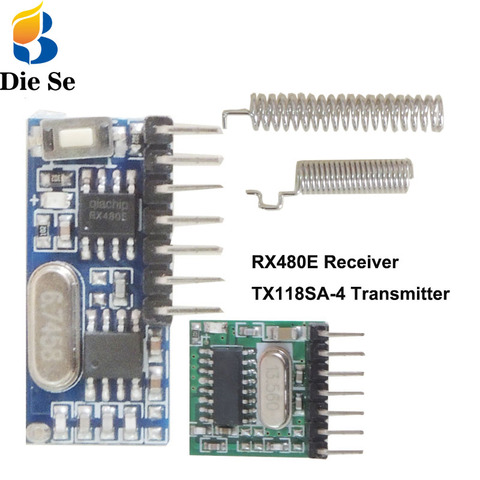

- Model Number: RX480E,TX118SA-4,receiver and transmitter
- Material: PVC
- Receiver Working voltage: DC 3.3~5V
- Quiescent Current: less than 5MA
- Output current: 10mA
- Channels: 4 Channels
- Frequency band: -0.2MHz , +0.2MHz
- Working temperature: -25~+75 degrees
- Receiving Sensitivity: -108dB
- Amount of storage remote controls: 25 pieces
- Support encoding: EV1527 Leaning code
- RF Operating mode: ASK superheterodyne wireless reception
- Receiver Size: 28*12.3*6 (mm)
- Receiving range: above 15 meters (Open space)
- Remote operating mode: Momentary Mode / Toggle Mode / Latched Mode
- Transmitter Working voltage: DC 3V-24V
- Rate of fire: maximum: 10KB / S
- Transmit deviation: +/- 7. 5KHZ / narrow-band emission
- Transmitting power: 11dbm
- Transmitter Size: 18*18*6 (mm)
433Mhz Superheterodyne RF Transmitter and Receiver Module Switch For Arduino uno Wireless module DIY Kits 433Mhz Remote controls
