Specifications
- Brand Name: Diese
- Use: Universal
- Use: Lighting
- Use: Electric Door
- Use: Automated curtains
- Use: Switch
- Wireless Communication: RF
- Support APP: No
- Channel: 1
- Package: Yes
- Frequency: 433 MHz
- Model Number: WL102-341,RX470-4
- Transmitter Working voltage: DC 2-3.6V
- Quiescent Current: 1uA
- transfer rate: 20KHz
- Working temperature: -30~+80 degrees
- Transmit deviation: +/- 7. 5KHZ / narrow-band emission
- Transmit Sensitivity: larger than 11dBm
- Transmitter Size: 16* 12 * 6(mm)
- RF Operating mode: ASK /OOK superheterodyne wireless reception
- Receiver Working voltage: DC 2.2~5V
- Max current: 2.1mA
- Frequency band: +/- 150KHz
- Receiving Sensitivity: -108dB
- Receiver Size: 30*9*6 (mm)

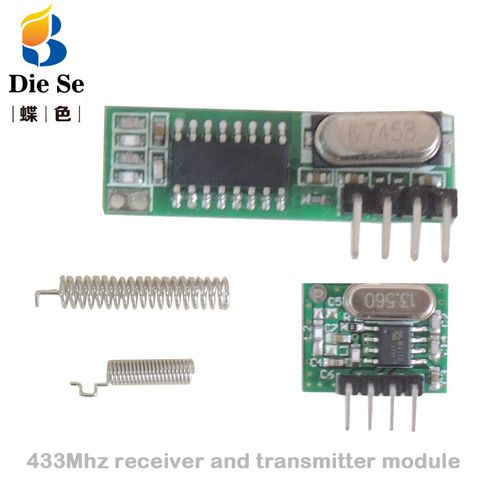

433 Mhz Superheterodyne RF Receiver Module and Transmitter Module with antenna For DIY kit 433Mhz Remote controls
