Specifications
- Brand Name: SURENOO
- Origin: CN(Origin)
- Display Mode: NC
- Model Number: SLC4004A
- is_customized: Yes
- Type: Character
- Resolution: 40*04
- Semiconductors & Actives Type: lcds & displays

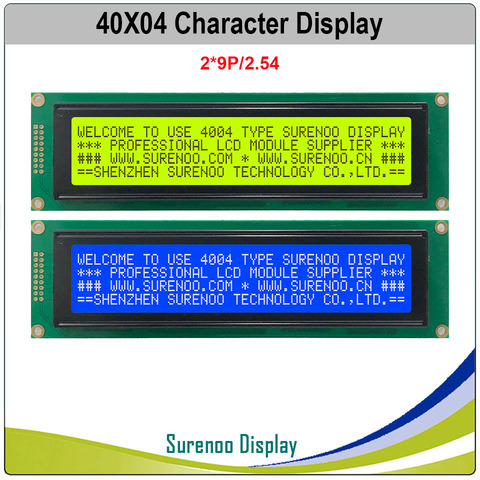

404 40X4 4004 Character LCD Module Display Screen LCM Yellow Green Blue with LED Backlight Build-in SPLC780D Controller
Price history
- for 3 month
- for half a year
- Requires Alitools extension
Price drop notification
This item is from other sellers
Similar Products
Customer Reviews
Item arrived, worked as expected. Contrast is a little less good than I would have hoped, but perfectly usable. Big warning - the wiring diagram on this page is wrong (or at least, it did not work for me) for the datapins. On my setup, the order was: Pin 1 = DB7 Pin 2 = DB6 Pin 3 = DB5 Pin 4 = DB4 Pin 5 = DB3 Pin 6 = DB2 Pin 7 = DB1 Pin 8 = DB0 The rest of the pinout is correct in the above diagram
