Specifications

  • Brand Name: NoEnName_Null
  • Origin: CN(Origin)
  • Certification: CE
  • Max Measuring Range: 400 Bar & Above
  • Model Number: HDP500

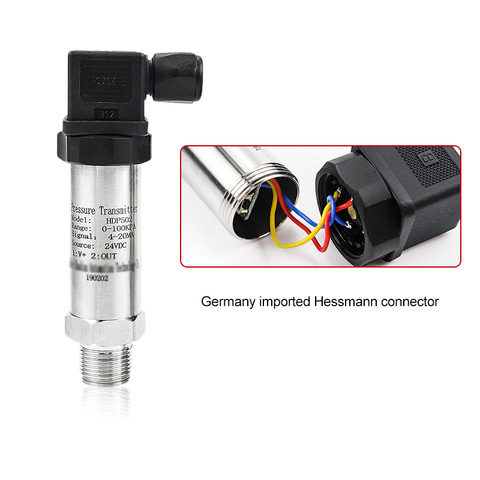

  • Product name: Pressure transmitter pressure sensor 0.5% 4-20ma output 24 vdc m20x1.5
  • Key words: Pressure transmitter
  • Guarantee period: 24 months
  • Power supply: 24VDC
  • Output signal: 4-20mA, 1-5V, 0-10V, RS485
  • Measuring range: -0.1-0-100Mpa
  • Compensation temperature: -10-70℃
  • Medium temperature: -40-80℃
  • Environment temperature: -40-85℃
  • Measuring media: Gaseous, Liquid, Water
  • Pressure type: Gauge pressure, Absolute pressure
  • Accuracy: 0.1%F.S, 0.25%F.S, 0.5%F.S(standard)
  • Zero tempe drift: ±0.03%F.S/℃
  • Sensitivity temperature drift: ±0.03%F.S/℃
  • Overload: 200%F.S
  • Inherent frequency: 5kHz- 650kHz
  • Protection grade: IP65

4-20ma vacuum gauge 25mpa 0 5v absolute 1/4" water pressure sensor
