Specifications
- Brand Name: NoEnName_Null
- Type: DC/DC Converters
- Origin: CN(Origin)
- Size: 12.7*110*118.9mm;17.7*110*118.9mm
- Model Number: HDH-22
- Output Frequency: 50Hz
- Output Type: 4-20mA, 1-5V,0-10V etc
- Output Power: <=800Ω(output current signal); <=10KΩ(output voltage signal)
- Weight: 0.5KG
- is_customized: Yes
- Output Current: DC24V
- Channels: One in one out , one in two out
- Installation: 35mm DIN rail
- Linearity: 0.1%
- Accuracy: 0.1%F.S
- Insulation intensity: 3kv/50HZ, one min
- Temperature drift: 40ppm/C
- Response time: 10ms
- Characteristics: Active or passive output switchable

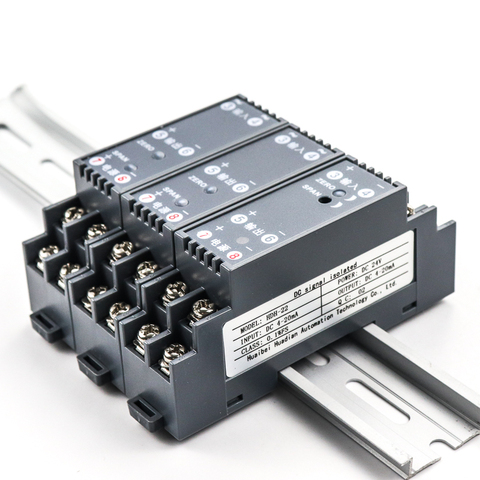

- Product name: DC Analog Signal Isolator
4-20mA DC Analog Galvanic Signal Converter Isolator 0-10V Signal Isolation Signal Isolator
19.73
–
35.23
$
6
orders
/
1
reviews
