Specifications
- Brand Name: Wisecoco
- Certification: NONE
- Origin: CN(Origin)
- Display Resolution: 480X320
- Screen: 2 - 3"
- Material: TFT
- Model Number: EV025Z6M-J80
- Type: LCDs
- Item Condition: New
- LCD Kit: Yes
- Screen Size: 2.5 inch
- Screen Type: LCM , a-Si TFT-LCD
- Pixel Number: 480(RGB)*480 194PPI
- Arrangement: RGB Vertical Stripe
- Active Area(mm): 62.64 * 62.64 (H*V)
- Outline(mm): 69.19 * 71.74 * 3.9 (H*V*D)
- Luminance: 400 (Typ.)
- Contrast Ratio: 1000 : 1 (Typ.) (TM)
- Viewing Angle: 85/85/85/85 (Typ.)
- Work Mode: ADS, Normally Black, Transmissive
- Signal Type: MIPI (2 data lanes) , 35 pins FPC

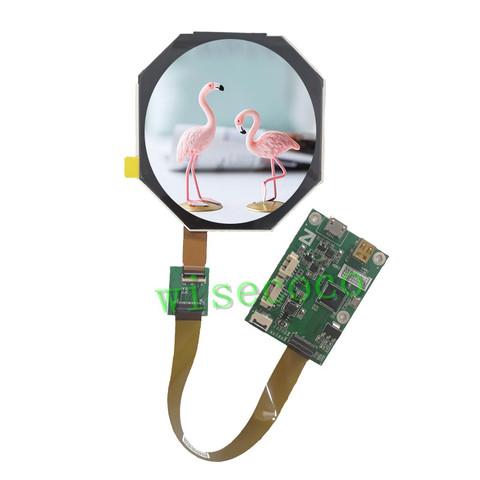

2.5 Inch 480*480 IPS TFT Round LCD Screen MIPI Driver Controller Board Display
