Specifications
- Brand Name: Ashining
- Item Type: Wireless module
- Model Number: AS01-ML01DP5
- RF chip: nRF24L01P
- Module size: 12 * 19mm
- Module weight: 0.5g
- Operate frequency: 2.4GHz ~ 2.5GHz
- Production craft: Lead-free, environmental protection process
- Interface mode: 1 * 8 * 1.27mm
- Supply voltage: 1.8 ~ 3.6V DC
- Communication level: 0.7VCC ~ 5V
- Measured distance: 120m
- Sending power: Maximum 0dBm
- Air rate: 250k ~ 2Mbps
- Turn off current: 1.0uA
- Sending current: 16mA@0dBm
- Receiving current: 12.6mA
- Communication Interface: SPI
- Transmitting length: Each data packet 1-32 byte
- Receiving length: Each data packet 1-32 byte
- RSSI support: Not support
- Antenna interface: PCB antenna
- Operation temperature: -40 - +85℃
- Operation humidity: 10% - 90%
- Storage temperature: -40 ~ +125℃
- Receiving sensitivity: -94dBm@250kbps

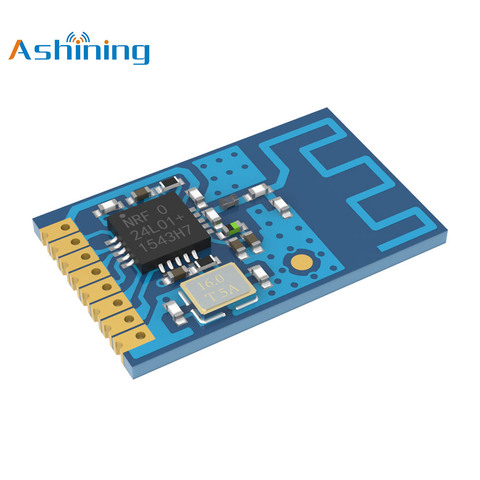

2.4GHz Remote Sensor SPI TX RX Rf Transmitter Receiver Module AS01-ML01S Ashining
