Specifications
- Brand Name: YUN DUAN
- Certification: CCC
- Current / Phase: 5.6A
- Step Angle(degrees): 1.8
- Phase: 2
- Type: Hybrid
- Model Number: 3*HBS860H+86HBS120+S-400-60
- Holding Torque: 12Nm
- Drive Input Voltage: 20~80VAC/30-110VDC
- Type of cooling: Air-cooling
- Flange: NEMA34 86MM
- Step angle: 1.8 degree
- Phase: 2PH
- Hold torque: 12NM
- Rated Speed: 1000RPM
- Encoder: 1000line
- Rated voltage/current: 3.92V/5.6A
- Resistance: 0.7ohm
- Inductance: 6mH
- Class of insulation: B
- Rotor inertia: 4500 g.cm2
- Power Supply: 400W
- Power Supply Input Voltage: (AC)110V/220V(+-10%)
- Power Supply Output Voltage: (DC):60VDC
- Safety Compliance: CCC/ FCC / CE

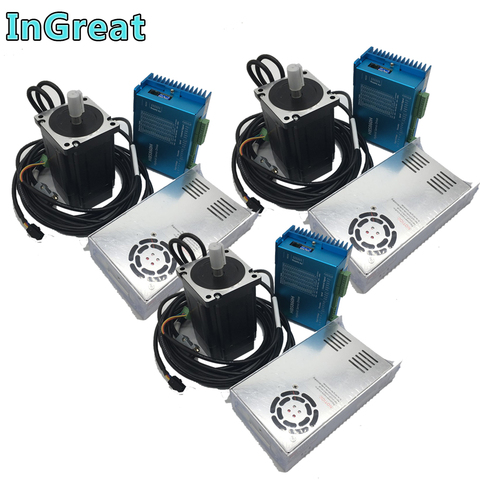

12Nm AC DC DSP Closed Loop Stepper Motor Driver Nema34 86MM & 400W 60V DC Power Supply Hybird Encoder Easy Step Servo 3 Kits
194.14
–
651.83
$
