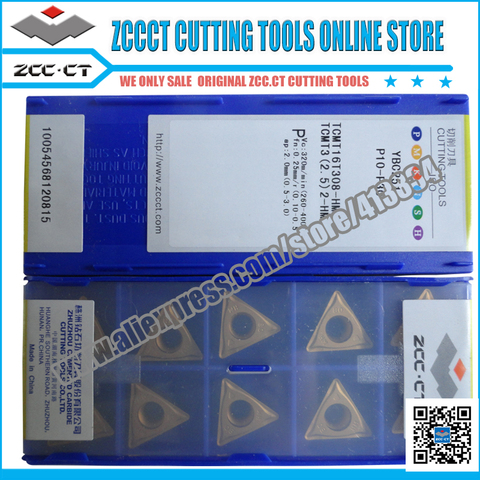

10pcs ZCC.ct insert TCMT16T308 -HM YBC251 TCMT 16T308 HM ZCCCT cutting tool blade cnc lathe tools cutter for steel TCMT16T308-HM ► Photo 1/1

Specifications

  • Brand Name: ZCC.CT
  • Origin: CN(Origin)
  • Coating: TiCN+TiC+Al2O3
  • Model Number: TCMT16T308-HM YBC251
  • Hardness: 90HRA
  • Usage: Internal Turning Tool
  • Material: Tungsten Carbide
  • Article number: TCMT16T308-HM YBC251
  • Insert included angle: 60 Degree
  • Clearance angle major: 7 Degree
  • Cutting edge length: 16.5 mm
  • Inscribed circle diameter: 9.525 mm
  • Insert thickness: 3.97 mm
  • Corner radius: 0.8 mm
  • Chip breaker: HM
  • Standard designation of the grade: P10-P30
  • Application: For external and internal cutting of steel

10pcs ZCC.ct insert TCMT16T308 -HM YBC251 TCMT 16T308 HM ZCCCT cutting tool blade cnc lathe tools cutter for steel TCMT16T308-HM
