Specifications
- Brand Name: LOCHEUK
- Model Number: 15EDG 3.81mm KF2EDG PCB Screw Terminal Block
- Pitch: 3.81mm
- Pin: 2pin 3pin 4pin 5pin 6pin 7pin 8pin 9pin 10pin 12pin
- Screw: M2, Steel. Zinc plated
- Contact: Phosphor bronze Ni plated
- Wire cage: Brass, Ni plated
- Housing: PA66 UL94V-0
- Rated voltage: 300V
- Rated current: 8A
- Wire range: 28-16A WG
- Temperature range: -40C-+105C
- Torque: 0.2 Nm
- Strip length: 7mm
- Style: Right Angle Curved needle
- Type: Splice
- Feature: 15EDGK 3.81mm
- Feature 1: KF2EDG 3.81mm
- Feature 2: PCB Screw Terminal Curved needle seat
- Feature 3: Plug in PCB terminal Block
- is_customized: Yes

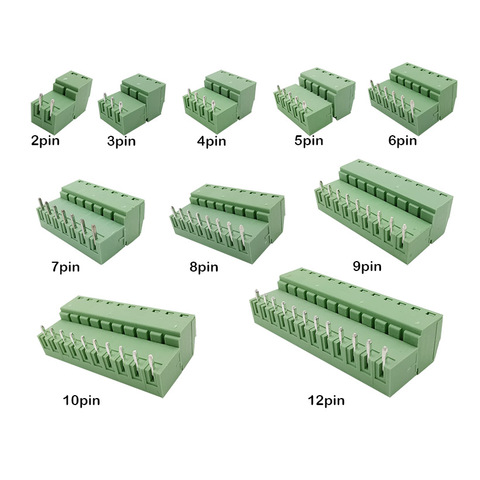

10pcs(5pair) 15EDG 3.81mm KF2EDG PCB Screw Terminal Block Connector Plug-Pin Right Angle Header Socket 2/3/4/5/6/7/8/9/10/12pin
