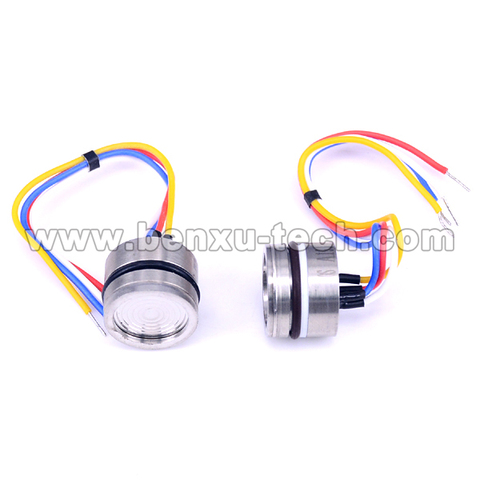

10kPa to 100MPa Piezoresistive Silicon Pressure Sensor ► Photo 1/4
10kPa to 100MPa Piezoresistive Silicon Pressure Sensor ► Photo 1/4
10kPa to 100MPa Piezoresistive Silicon Pressure Sensor ► Photo 2/4
10kPa to 100MPa Piezoresistive Silicon Pressure Sensor ► Photo 3/4

Specifications

  • Brand Name: BENXU
  • Max Measuring Range: 400 Bar & Above
  • Model Number: BX-PSC19
  • Pressure Type: Gauge pressure,sealed gauge pressure
  • Input impedance: Constant current:2-5kohms Constant voltage:3-18kohms
  • Electrical connection: silicon soft wire
  • Operating temperature: -40 to 125C
  • Storage temperature: -40 to 125C
  • Insulation resistance: more than 200Mohms/250VAC
  • Response time: less than 1ms(up to 90%FS)
  • Measured medium: All the liquids and gases compatible with 316L
  • Mechanical vibration: 20g(20-5000Hz)
  • Shock: 100g(10ms)
  • Diaphragm material: 316L
  • Housing material: 316L
  • Oil filling: Silicon oil
  • Sealing ring: NBR or fluorine rubber
  • Cable connection: 4 wires

10kPa to 100MPa Piezoresistive Silicon Pressure Sensor

Seller:
Alitools rating:
79%
/
Aliexpress rating:
100%
17.33 18.50 $
30   orders
/
5   reviews
Rating: 5
