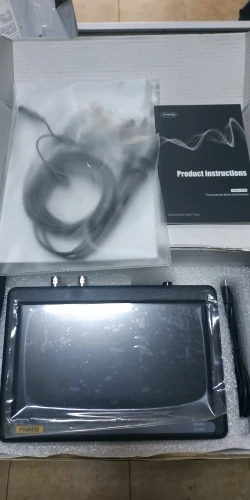

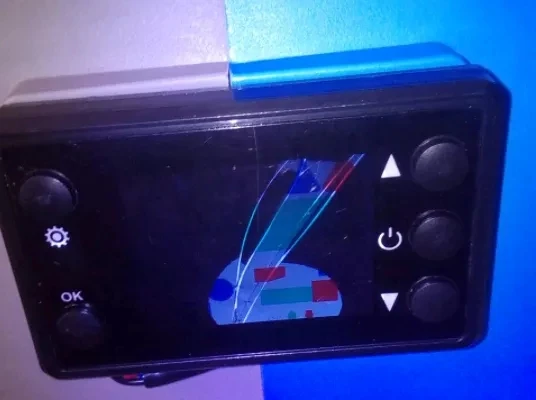

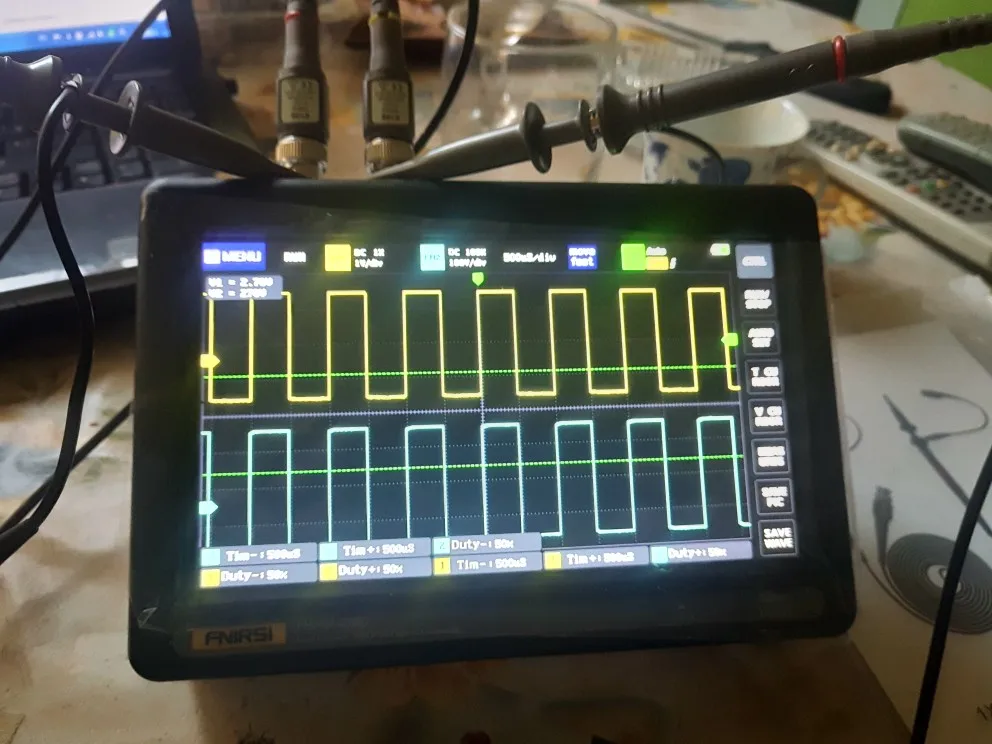

Photos of buyers
Specifications
- Brand Name: KKMOON
- DIY Supplies: ELECTRICAL
- Certification: NONE
- Origin: CN(Origin)
- Display Size: 7 Inches & Above
- IS Battery Demountable: Yes
- Display resolution: 800*480 Pixels
- Digital Channels: 2
- Model Number: Digital Oscilloscope
- Real Time Sampling Rate: 1GSa/S
- Band Width: 100-349MHz
- Analog band width: 100MHz * 2
- Maximum real time sampling rate: 1GSa/s
- Vertical sensitivity: 50mV/div~500V/div
- Horizontal time base range: 50S/div~10nS/div
- Maximum test voltage: 40V (1X probe), 400V (10X probe)
- Storage depth: 240Kbit
- Input resistance: 1M
- ADC precision: 8bits
- Coupling mode: AC/DC
- Trigger mode: Single, Normal, Auto
- Trigger edge: Rising edge / Falling edge
- Display: 7 inch - 800*480
- Power supply: 1 * lithium battery, 6000mAh (included)
- Operating: capacitive touching screen + gesture

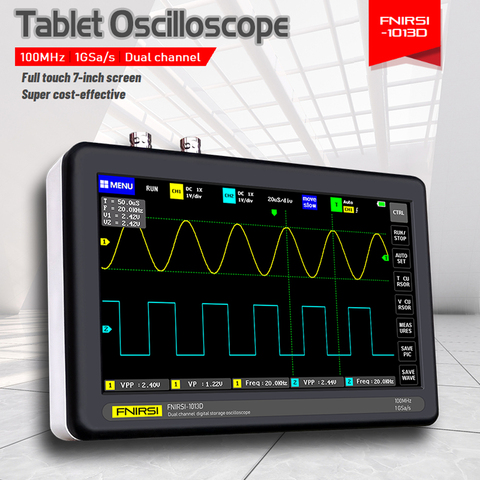

1013D 2 Channels Oscilloscope 100MHz Band Width 1GSa/s Sampling Rate Oscilloscope with 7 Inch Color TFT LCD Touching Screen
132.17
$
11
orders
/
2
reviews
