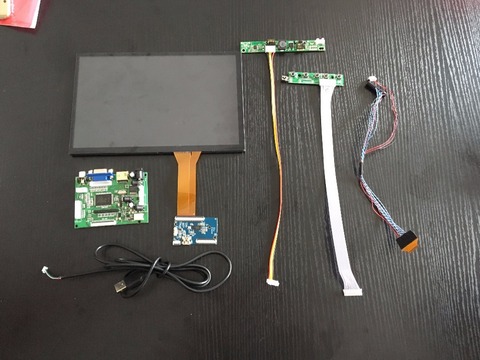

10.1 inch 1280*800 Capacitive Touch Screen IPS LCD Module Monitor Display Backing Car USB VGA 2AV Raspberry Pi 3 Remote ► Photo 1/6
10.1 inch 1280*800 Capacitive Touch Screen IPS LCD Module Monitor Display Backing Car USB VGA 2AV Raspberry Pi 3 Remote ► Photo 1/6
10.1 inch 1280*800 Capacitive Touch Screen IPS LCD Module Monitor Display Backing Car USB VGA 2AV Raspberry Pi 3 Remote ► Photo 2/6
10.1 inch 1280*800 Capacitive Touch Screen IPS LCD Module Monitor Display Backing Car USB VGA 2AV Raspberry Pi 3 Remote ► Photo 3/6

Specifications

  • Brand Name: Wisecoco
  • Certification: none
  • Origin: CN(Origin)
  • Touch Screen Type: Capacitive Screen
  • Display Resolution: 1280x800
  • Screen: > 3"
  • Material: IPS
  • Model Number: BP101WX1-300
  • Type: LCDs
  • Item Condition: New
  • LCD Kit: Yes
  • Panel Size: 10.1"
  • Panel Type: a-Si TFT-LCD, LCM
  • Resolution: 1280(RGB)*800, WXGA, 149PPI
  • Pixel Format: RGB Vertical Stripe
  • Display Area: 216.96(W)*135.6(H) mm
  • Bezel Opening: 218.56(W)*137.2(H) mm
  • Outline Size: 228.21(W)*148.86(H) *4.59(D) mm
  • Surface: Hard coating (3H)
  • Brightness: 450 (Typ.)
  • Contrast Ratio: 900:1 (Typ.) (TM)
  • Viewing Angle: 89/89/89/89 (Typ.)
  • Display Mode: PLS, Normally Black, Transmissive
  • Display Colors: 16.2M 50% NTSC
  • Lamp Type: 4 strings WLED , Without Driver
  • Signal Interface: LVDS (1 ch, 8-bit) , 45 pins Connector

10.1 inch 1280*800 Capacitive Touch Screen IPS LCD Module Monitor Display Backing Car USB VGA 2AV Raspberry Pi 3 Remote
