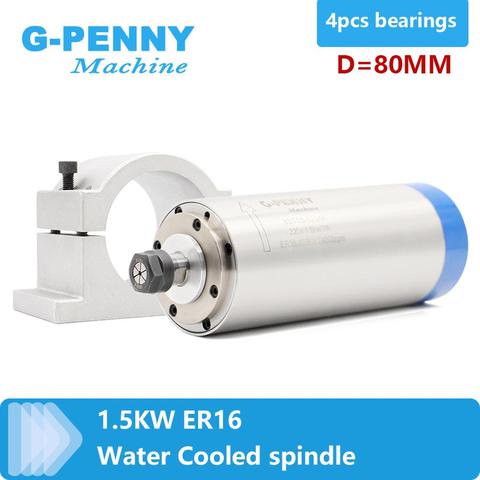

1.5KW water-cooled spindle ER16 CNC spindle motor  Water Cooled 80x220mm & 80mm cast aluminium clamp spindle mount bracket ► Photo 1/6
1.5KW water-cooled spindle ER16 CNC spindle motor  Water Cooled 80x220mm & 80mm cast aluminium clamp spindle mount bracket ► Photo 1/6
1.5KW water-cooled spindle ER16 CNC spindle motor  Water Cooled 80x220mm & 80mm cast aluminium clamp spindle mount bracket ► Photo 2/6
1.5KW water-cooled spindle ER16 CNC spindle motor  Water Cooled 80x220mm & 80mm cast aluminium clamp spindle mount bracket ► Photo 3/6

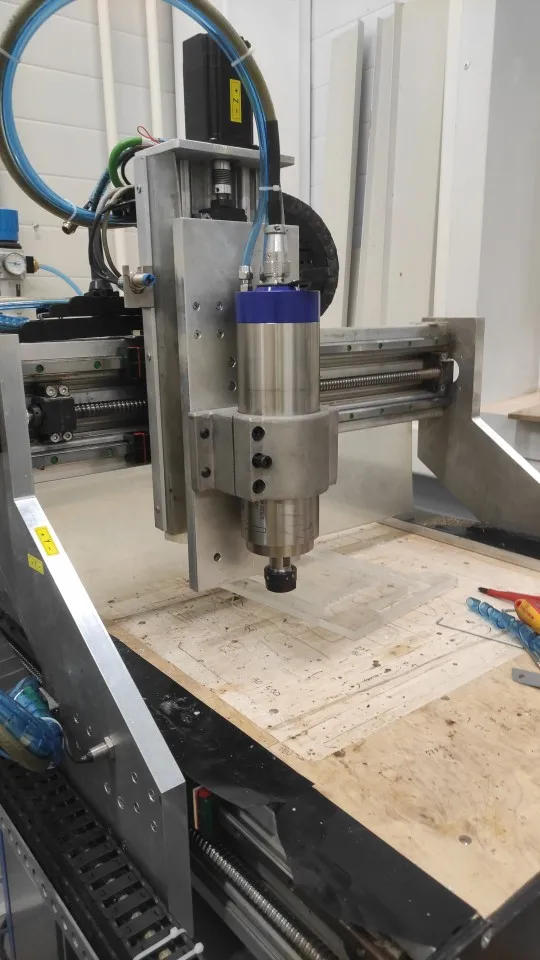

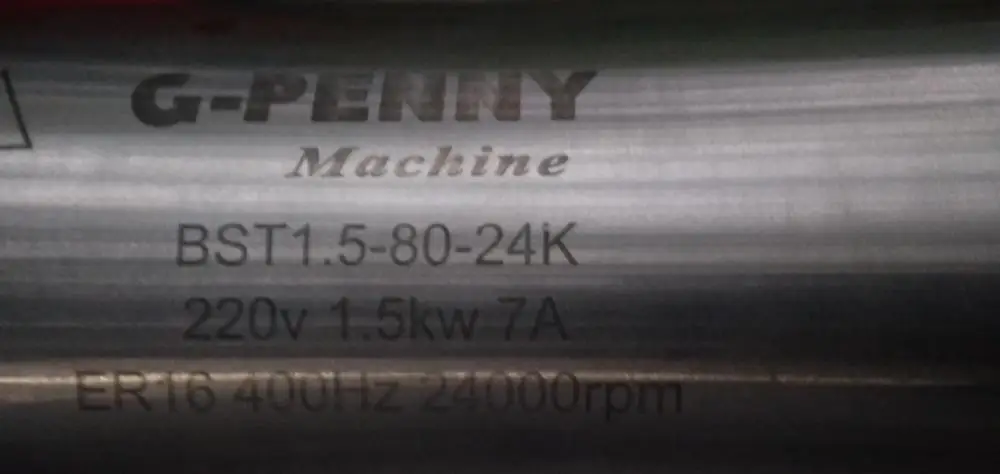

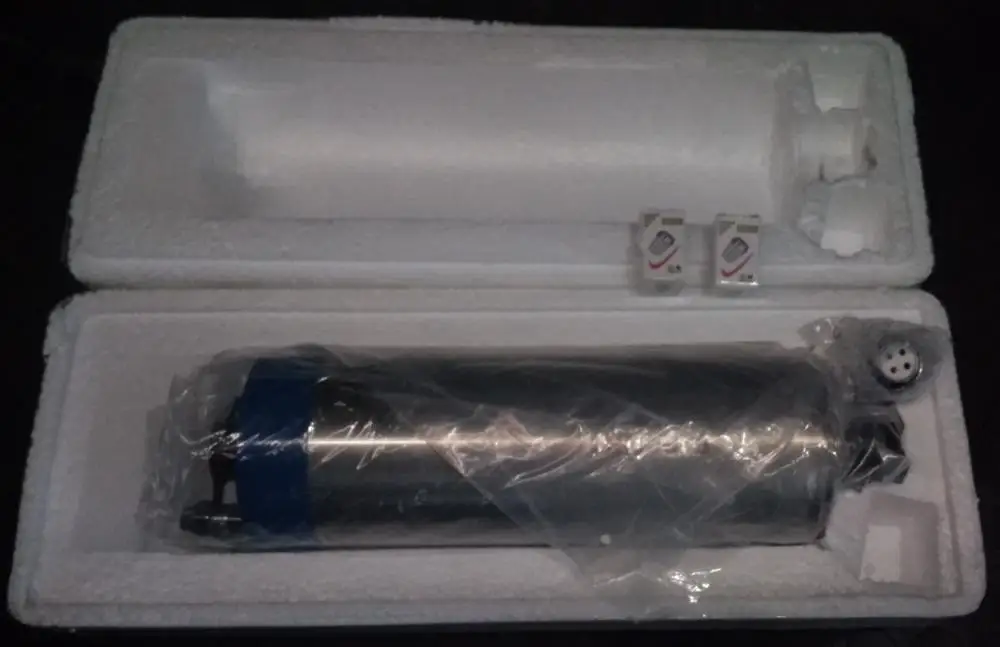

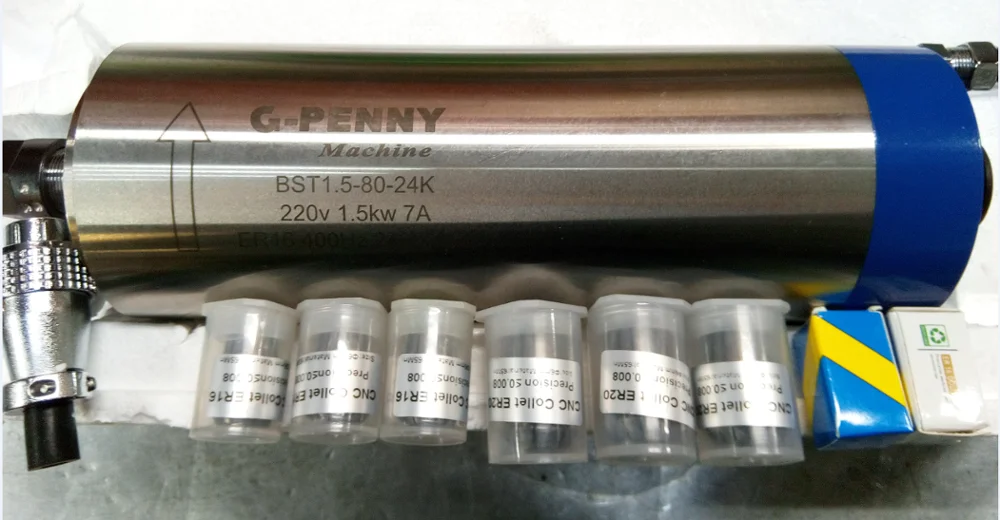

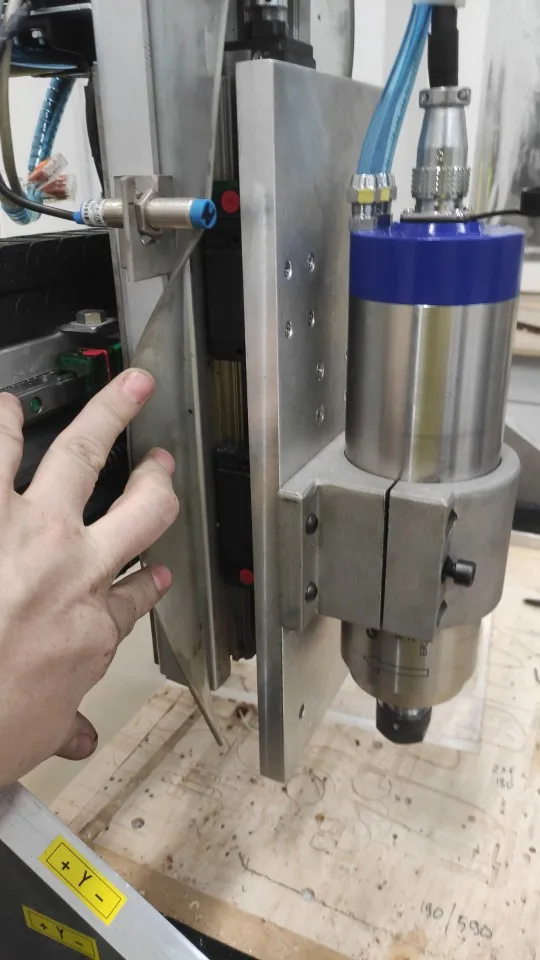

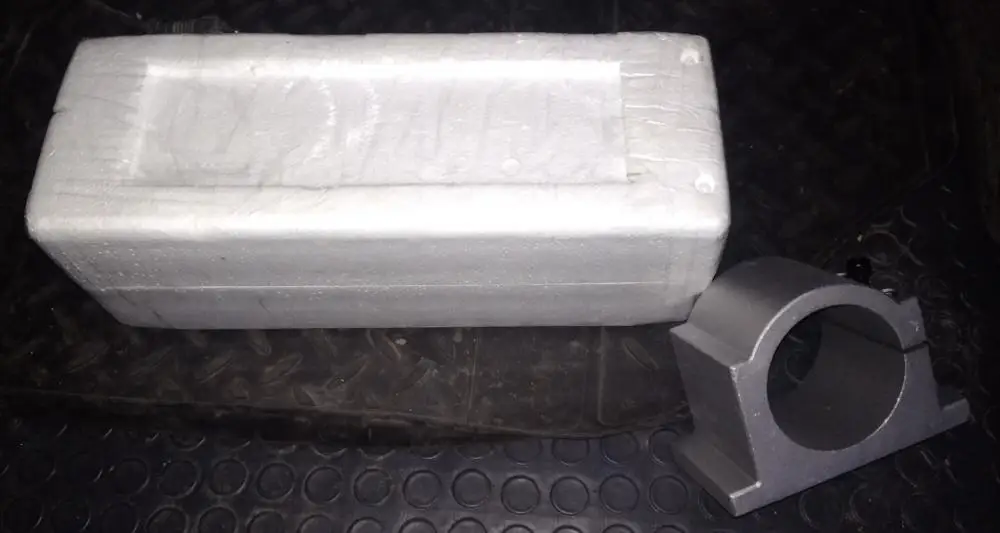

Photos of buyers

7 more
photos

Specifications

  • Brand Name: G-PENNY MACHINE
  • Operating Speed: 0-24000rpm
  • Drive: MOTOR
  • Application: Milling
  • Model Number: 1.5kw ER16 Water cooled Spindle kit
  • Maximum Torque: 0.54Nm
  • Size: 80x220mm
  • Voltage: 220v
  • Current: 7A
  • Power: 1.5kw (1HP=735w)
  • Cooling: Water cooled
  • Bearing Type: 2 X 7004C P4 DT and 2X 7002C P4 DT
  • Collet: ER16
  • Frequency: 400Hz
  • Collet Range: 1-10mm (Including 1/4,1/8)
  • Spindle Bracket: 80mm

1.5KW water-cooled spindle ER16 CNC spindle motor Water Cooled 80x220mm & 80mm cast aluminium clamp spindle mount bracket

Seller:
Alitools rating:
85%
/
Aliexpress rating:
100%
104.98 107.57 $
69   orders
/
2   reviews
Rating: 5

Price history

Price drop notification

Out telegram bot will notify you once the price drops to the desirable one

Customer Reviews

Anonymous
December 30, 2020

Very happy with the spindle,great service,fast shipping, great product.

P***v
May 30, 2020

Super spindles, best offer on the market, best price best delivery

Anonymous
