Specifications
- Brand Name: G-PENNY MACHINE
- Maximum Torque: 0.51Nm
- Drive: MOTOR
- Model Number: 220v 1.5kw ER11 water cooled spindle
- Application: Milling
- Operating Speed: 0-24000rpm
- Size: 80x200mm (80mm diameter)
- Voltage: 220v
- Current: 7A
- Power: 1.5kw (1HP=735w)
- Cooling: Water cooled
- Bearing Type: 2 X 7002C P4 DT and 2X 7002C P4 DT
- Collet: ER11
- Frequency: 400Hz
- Lubrication: Grease
- Collet Range: 1-7mm (Including 1/4,1/8)

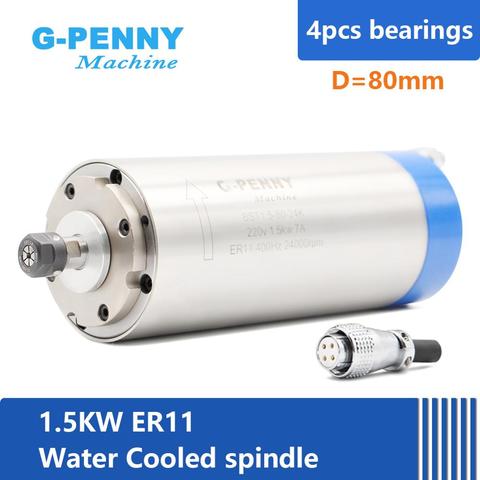

1.5kw ER11 water cooled spindle motor 4 pcs bearings 80x200mm 0-24000rpm accuracy 0.01mm for CNC wood working
Price history
- for 3 month
- for half a year
- Requires Alitools extension
Price drop notification
This item is from other sellers
Similar Products
Customer Reviews

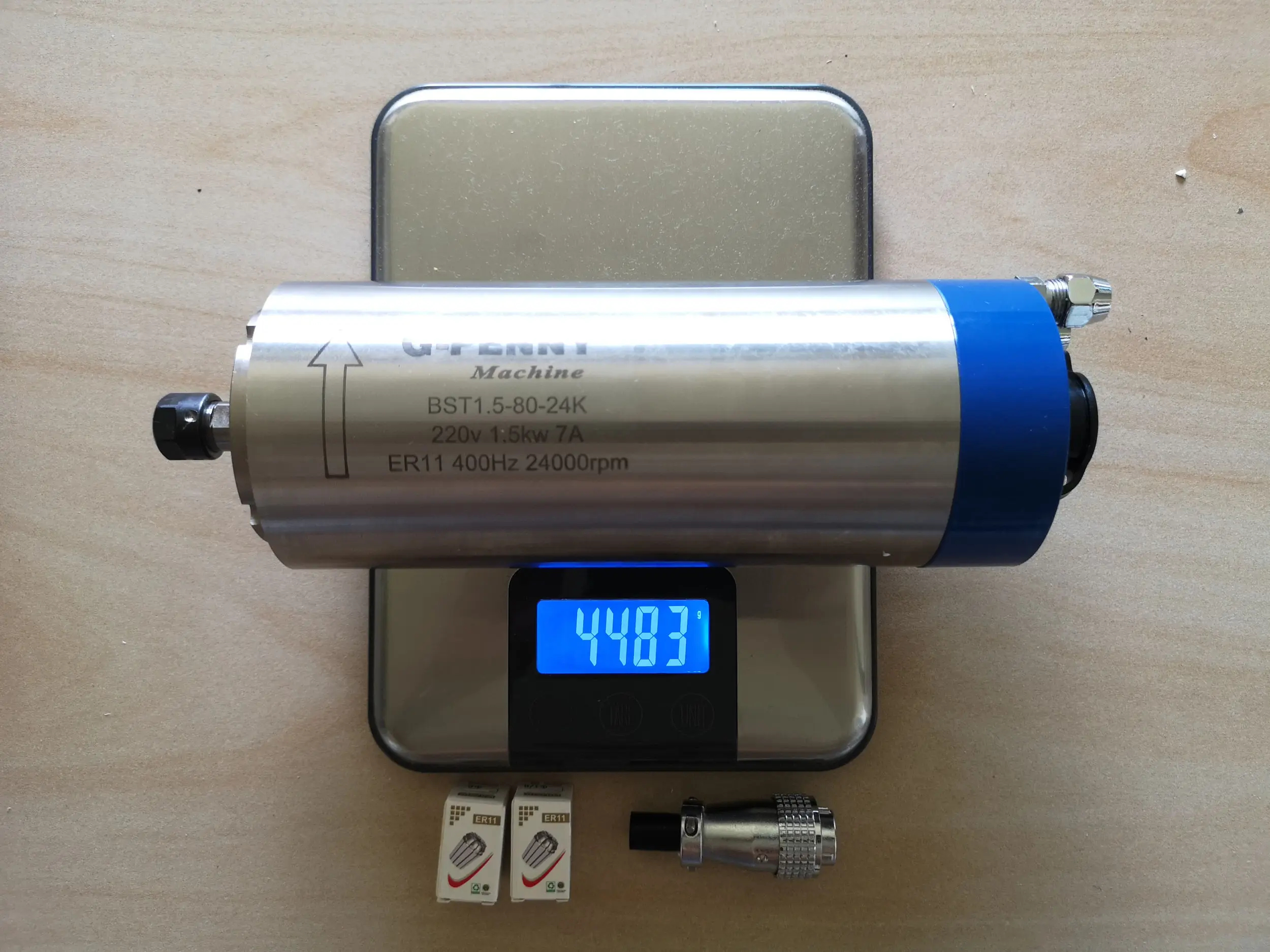

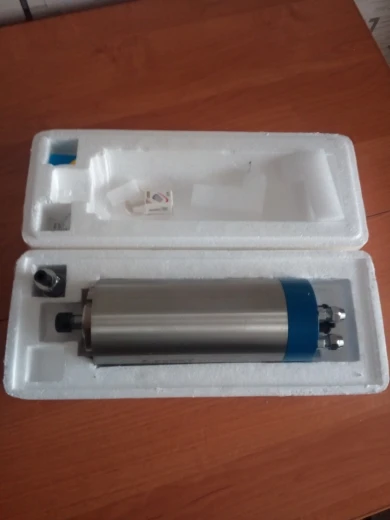

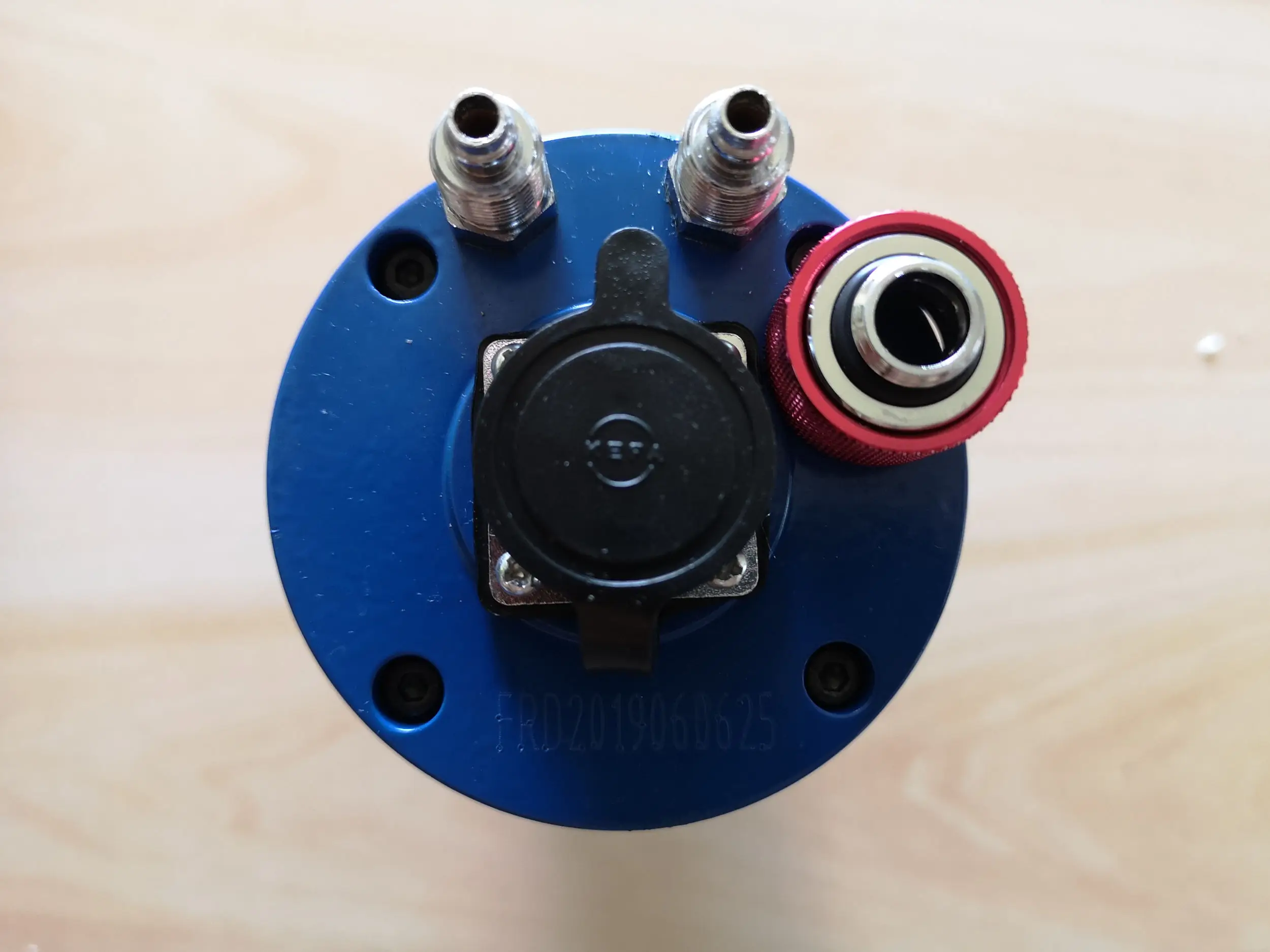

Very impressed by the quality of the product, you are buying here directly from a manufacturer. They even kindly upgraded my shipping to Fedex without any additional fees, very great gesture. It's an heavy water-cooled spindle, 4.5Kg dry but not for cutting steel. Solid construction. It comes with two ER11 collet. The water will go through a stainless steel chamber so be careful of not using zinc, galvanised steel, aluminium, cadnium, cast iron, lead, mild steel, thin, lead-tin solder and chromium plate in your water cooling loop. I'm not sure if you can use G1/4 fittings with this spindle, it seems to be maybe compatible but the stock fittings already installed are very very tight, it will require a huge amount of force to unscrew them but it might worth to be tried. The stock fittings will be compatible with 5~6mm ID tube. Keep it up the great job <3
