Specifications
- Brand Name: NoEnName_Null
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: LY 4020 full cast iron engraver
- CNC or Not: CNC
- Is Smart Device: No
- Effective work area: X=380MM,Y=220MM,Z=280MM
- Spindle power: 1500W / 2200W
- LINEAR GUIDEWAY: X 25MM,Y 25MM,Z 25MM
- SLIDE BLOCK: 4 PCS Per axis.Total 12 pcs
- LEAD SCREW/SCREW NUT: TBI ballscrew C7 grade,2005-4 double nuts
- LEAD SCREW/BEARING: HRB P5 grade dual angles contact balls bearing
- REPEATED POSITIONING ACCURACY: 0.005-0.01mm
- PLATFORM FLATNESS: ± 0.02MM
- X Y PERPENDICULARITY: ± 0.02MM
- Z PERPENDICULARITY: ± 0.02MM
- SOFTWARE: USB Mach3 (Default) / Ncstudio (Optional)
- SPINDLE RPM: 24000RPM
- VOLTAGE: 220V/50Hz
- VFD POWER: 1.5KW/2.2KW
- SPINDLE COLLET: 1.5KW with ER11A-3.175 / 2.2KW with ER20A-6mm

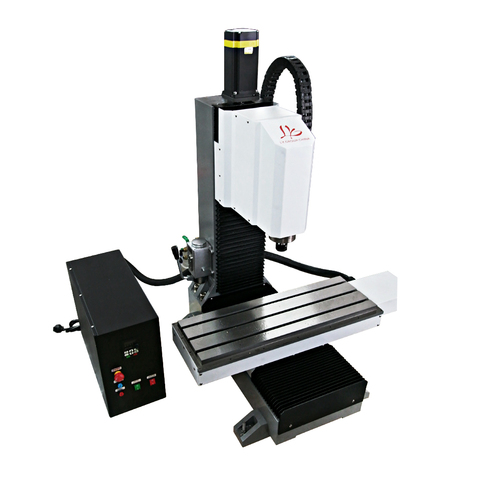

1.5KW 2.2KW Full Cast Iron 4020 CNC Router Metal Engraving Cutting Milling Machine Z Axis 300mm Support Upgrade 4 Axis 5 Axis
2 897.99
–
3 367.19
$
